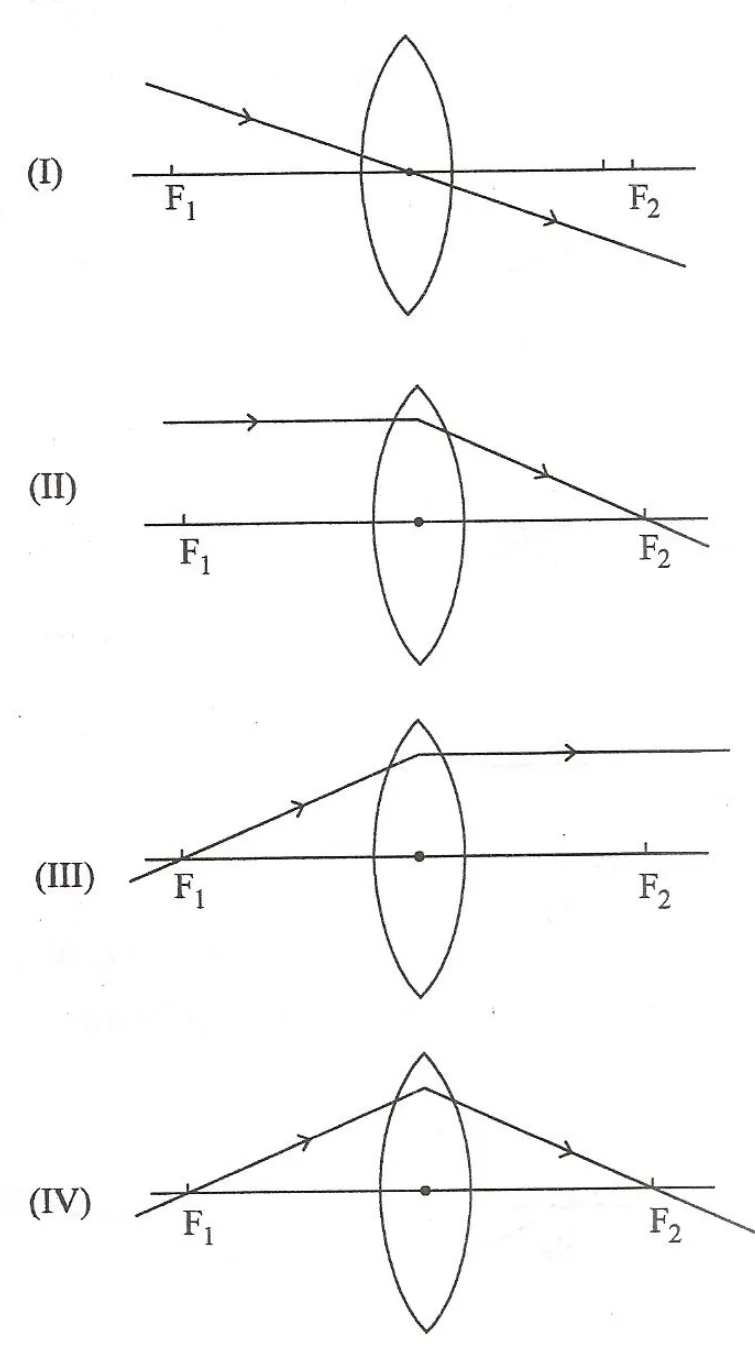

Study the following ray diagrams. The diagrams showing the correct path of the ray after passing through the lens are:
Study the following ray diagrams. The diagrams showing the correct path of the ray after passing through the lens are:
Options
Official answer
The correct path of the ray after passing through the lens is shown in diagrams I, II, and III.
Marking scheme
- 1.I
- 2.II
- 3.III
Hint
The correct path of the ray after passing through the lens is shown in diagrams I, II, and III.
Quick oral answer
The correct path of the ray after passing through the lens is shown in diagrams I, II, and III.
Common mistakes
- 1.thinking that the ray is not refracted in diagram IV
Analysis and explanation
The correct path of the ray after passing through the lens is shown in diagrams I, II, and III. This is because the ray passes through the center of the lens in diagram I, and is refracted in diagrams II and III. Diagram IV shows the ray passing through the lens at an angle, but it is not refracted.
